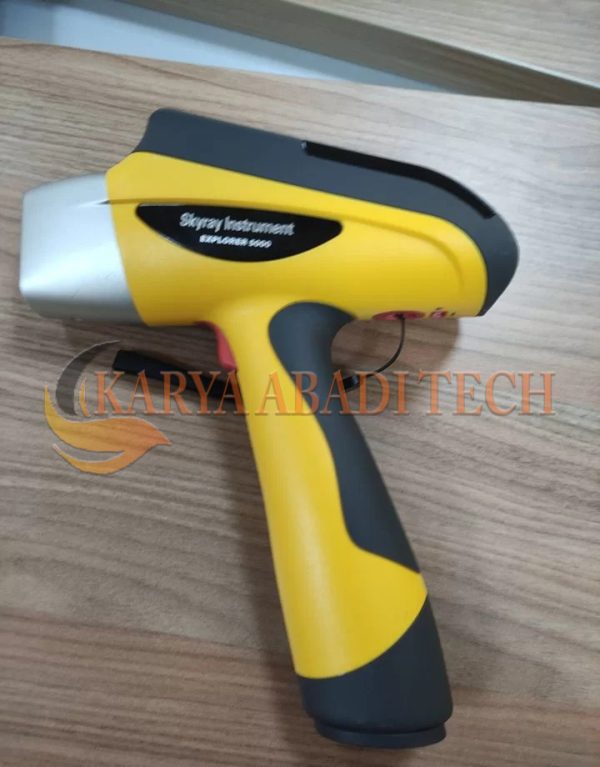

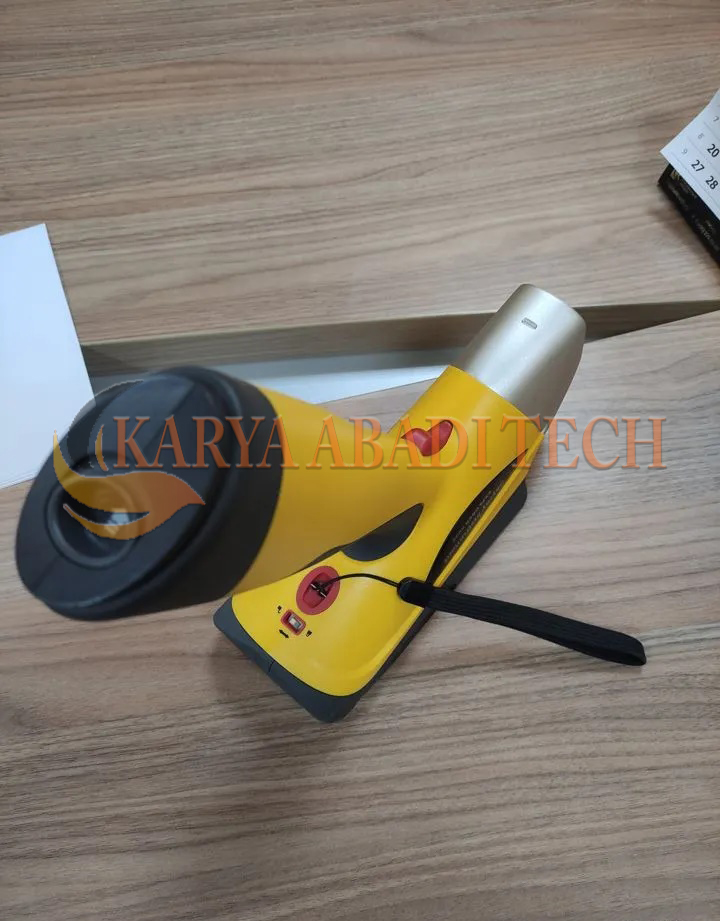

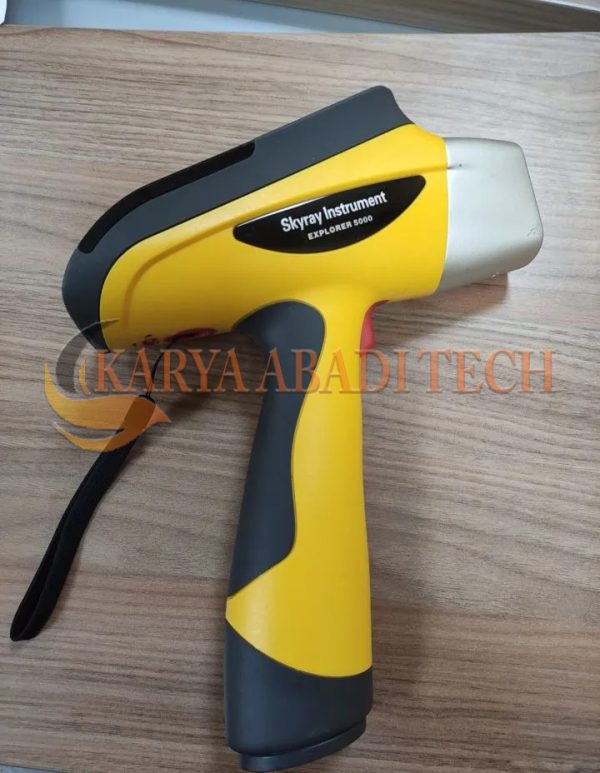

Skyray Instruments Explorer 5000 Handheld Spectrometer


Model : Explorer 5000

Category: Tag:


Skyray Instruments Explorer 5000

Skyray Explorer 5000 can make accurate and nondestructive detection on a variety of precious metal alloys, low alloy steel, stainless steel, tool steel, chrome / molybdenum steel, nickel alloys, cobalt alloys, nickel / cobalt-resistant alloys, titanium, copper alloy, bronze, zinc alloy, tungsten alloy, etc. Knowing the materials composition and alloy kind in one second. Rapid detection on aluminum and magnesium alloy grades is possible and it allows to make reliable identification and confirmation of the material (PMI) and precisely control the materials quality > Light weight, small size, ergonomic handle design, equipped with a special instrument case, which is easier to grasp and more convenient to use in the field. >5 inch high-definition screen with 360 degree rotation, multiple points operating, can display clearly at any lights. > No need for sample preparation.


Specification of Skyray Explorer 5000

Analytical Method Energy dispersive X ray fluorescence analytical method
Elements Measuring range Automic number from 12 to 92[elements from magnesium(Mg) to uranium(U)] can be measured
Simultaneous detector elements Simultaneous analysis 40 elements
Microcomputer system Customized system:
System memory: 1G
Extended stored maximum support: 32G
Standard: 4G for mass storage data
The content range ppm ~ 99.99%
The detection time 1 ~ 60 seconds (a second report results)
A built-in system GPS, Wi-Fi, Bluetooth
Power supply Rechargeable lithium battery, Standard is 9000mAh, sustainable work up to 12 hours, optional is 27000mAh superbattery with wide voltage 110V – 220V universal adapter for recharging power supply
Detection Objective Solid, Liquid, Powder
Detector SDD detector or Fast-SDD detector(optional)
Detector resolution Minimum can reach 128eV
The excitation source 50KV/200uA-silver target end window integrature X ray tube and high voltage power supply
Collimator and filter Collimator diameters are 4.00mm and 2.0mm, 6 kinds of filters with automatic switching functions
Video system 500W pixel high resolution camera

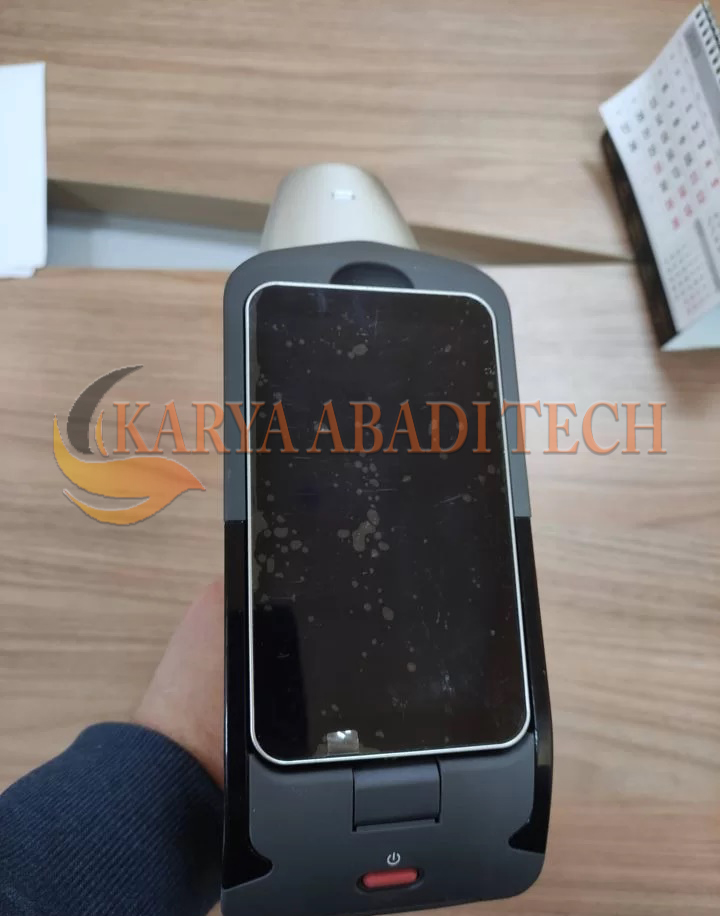

Display System Brand new 5 inch transflective LCD touch screen, the resolution is 1080 x 720
Detection limit The minimum detection limits at 1 ~ 500 ppm
Safety Multiple safety protection:
No tests
No radiation
Radiation levels at work are far below the international safety standards, and has no sample telemetry
Automatic shut X light tube function.
Standard radiation shields
Thickened wall alloy test instrument
Specialty Ore special edition analysis software, using intelligent one key test
Convenience of application Key intelligent matching the best curve that no need to select curve
Data transmission Digital multi-channel technology
SPI data transmission
Quick analysis
The high count rate
Waterproof mini USB and can be connected with a desktop computer
Operating ambient humidity <90%
Operating environmental temperature -20°C to +50°C
Instrument dimension 244mm(Length)X 90mm (Width)X 330mm (Height)
Instrument weight 1.7 KG
Intelligent warning signals indicator system Green light means power on
Red flashing meanse Testing
Yellow flashing meanse the Problems

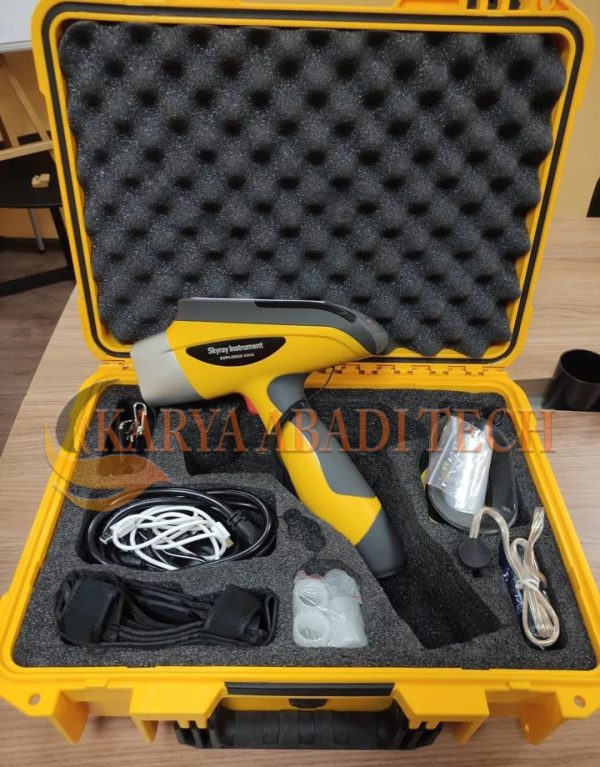

Accessories Three-military protection box is compression
Waterproof and shock absorption
Universal charger and car charger
4G SD memory card and card reader
Two lithium battery and charger
PDA accessories
Radiation shield
Optional accessories:
The large battery
Seat type test support
Bluetooth printer
Manual pressure machine and other options can to choosen….



Additional information

Lead Time

5-7 days
