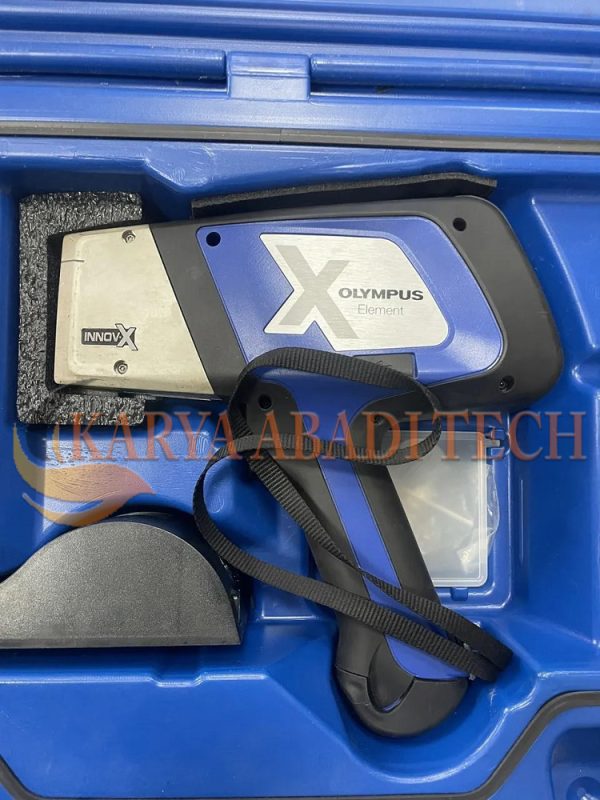

Olympus Innov-X DE 2000 Delta Element XRF Analyzer


Model : DELTA Element 2000

Category: Tag:


Olympus Innov-X DE 2000

The DELTA Element 2000 is the most affordable unit in the Olympus line-up of handheld X-ray fluorescence (XRF) analyzers designed for fast, accurate results. Easy-to-use and reliable, the DELTA Element incorporates the features and rugged design of the DELTA family. With fast Alloy ID for screening, sorting and metals analysis, the DELTA Element provides fast ROI for Scrap, PMI, QA/QC and Jewelry /Precious Metals applications.

With a powerful X-ray tube and Si-PIN detector, the DELTA Element is ideal for everyday alloy applications. It provides quick ID, screening, sorting and elemental and metal analysis.

The DELTA Element offers fast measurement with results in seconds, low limits of detection, and outstanding precision.

The DELTA Element’s field-worthy and rugged design features rubber overmolds and an ergonomic grip to protect the analyzer. To limit downtime, the hot swap feature allows the batteries to be swapped out while the analyzer is in use. The DELTA Element features integrated wide area heat sinks for high power use in extreme temperatures.

Olympus’ exclusive Grade Match Messaging (GMM) feature provides information to simplify verification and streamline operations. Users can assign customized messages to any grade and use real-time or pop-up messages for immediate sorting instructions and improved user efficiency.


Features Delta Element 2000 :

  • Powerful 4W X-ray tube for optimum element excitation
  • Tight geometry for exceptional LODs and fast analysis
  • Lightning-fast data acquisition for faster testing time
  • Floating Point Processor: Provides more calculations in less time, and leverages more advanced calibration algorithms
  • Integrated Bluetooth® for data input and output available in most countries
  • Analysis indicator lights visible from 360° to help ensure safe use
  • Advanced colortouch LCD screen for clarity, brightness, responsiveness, and energy efficiency for indoor/outdoor use
  • Accelerometer technology puts the unit into sleep mode to save energy when not in use; logs impacts for tool management
  • DELTA PC software for enhanced data analysis, calibration modeling, and optional closed beam workstation operation
  • USB interface port for high-speed downloads and seamless PC control
  • Ergonomic rubberized handle for enhanced grip
  • Hot Swap batteries to maximize uptime and productivity



Excitation source: 4W Au anode X-ray tube
Detector: Si-PIN Diode Detector
Analytical range: Ti and higher
Weight: 1.5 kg (3.25 lbs) without battery
Dimensions: 260 × 240 × 90 mm (10.25 × 9.5 × 3.5 in.)
Environmental temperature range: -10 ºC to 50 ºC (14 ºF to 122 ºF)
Processing electronics: 530 MHz CPU with integrated FPU with 128 MB RAM; Proprietary Olympus Digital Pulse Processor (DPP)
Power: Rechargeable Li-ion battery; Hot-swap maintains analyzer power during battery charge
Data display: 32 bit Color QVGA resolution, Blanview transmissive backlit touch screen; 57 × 73 mm (2.25 × 2.9 in.)
Data storage: 1 GB microSD (stores ~75,000 readings)
Data transfer: USB, Bluetooth®

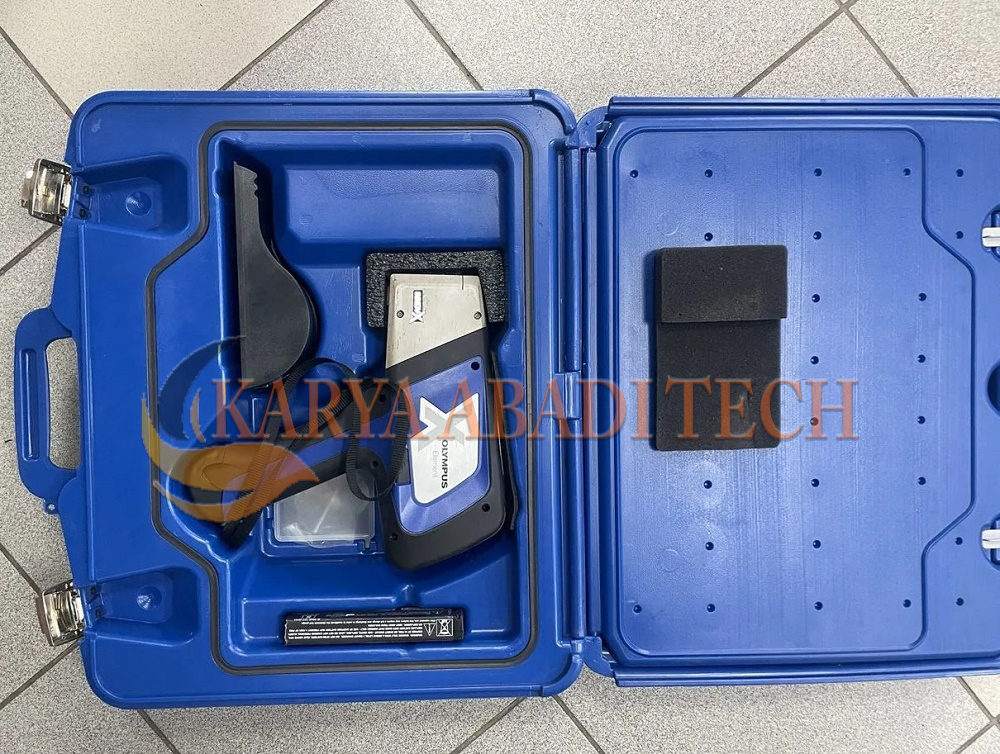

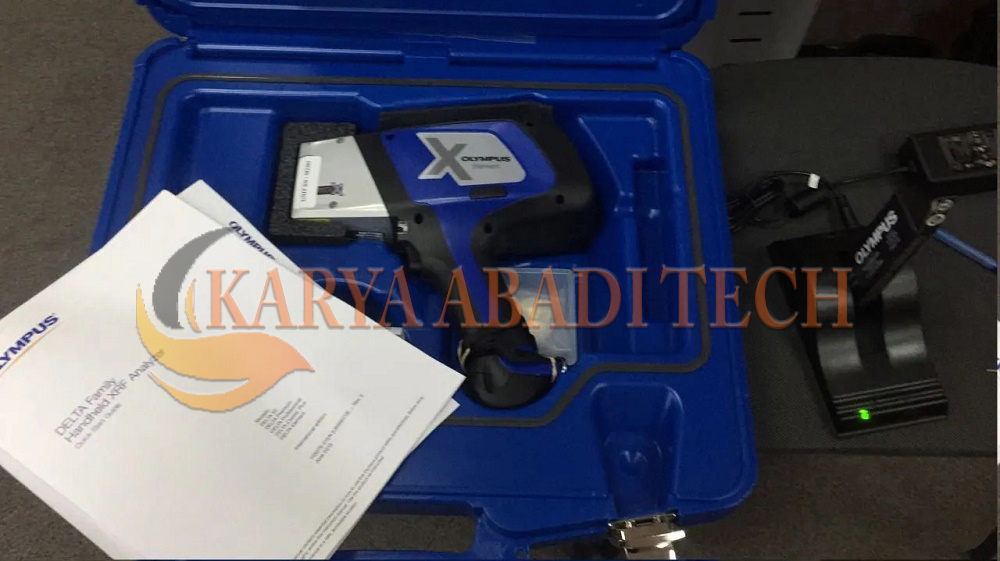

Package Include :

  • Olympus DE-2000 Delta Element XRF Analyzer
    • Alloy
    • Precious Metals
  • Olympus 316 SS Standardization Coin
  • Battery Pack
  • Olympus Battery Charger
  • AC Adapter/Charger
  • Power Cord
  • USB PC Interface Cable

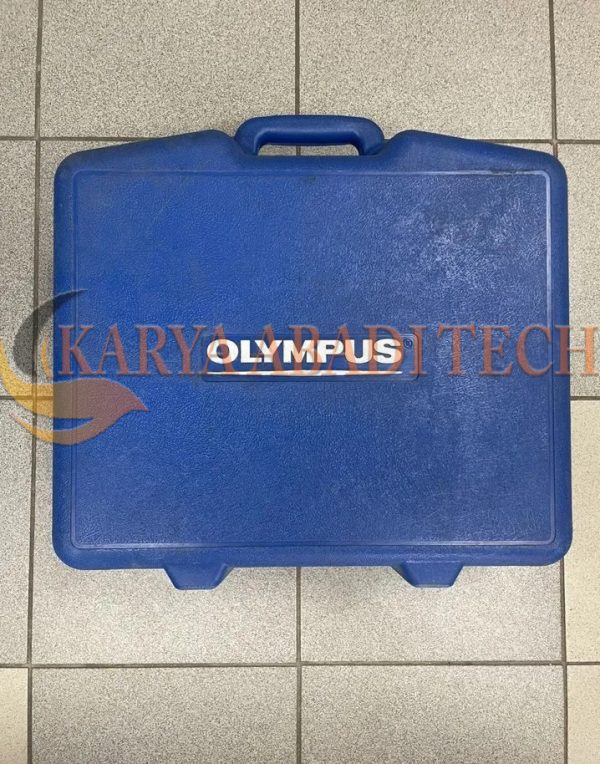

  • Hard Carrying Case

Additional information

Lead Time

5-7 days
