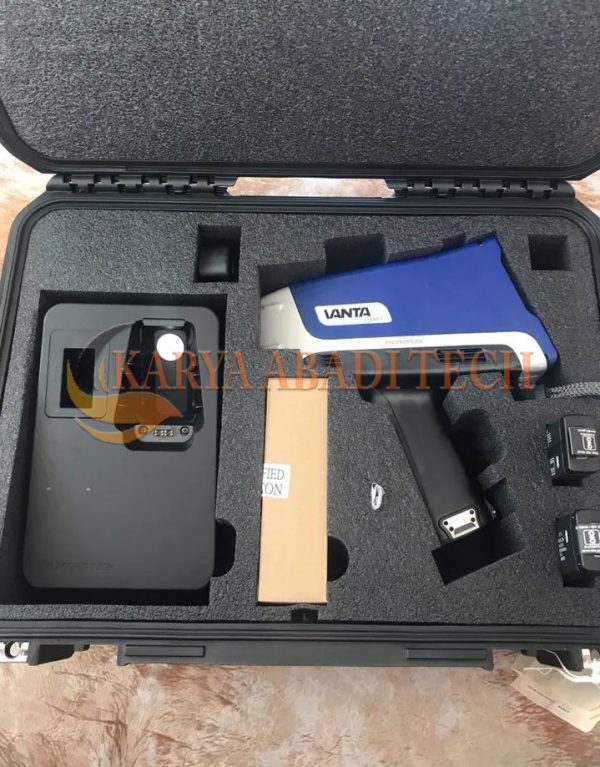

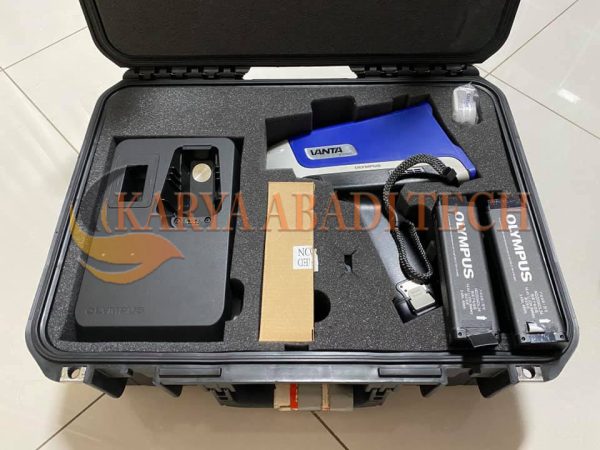

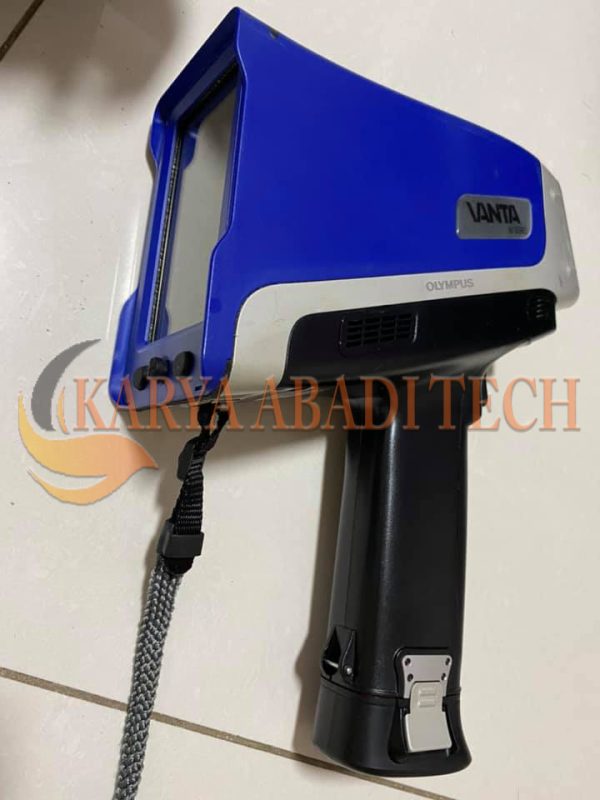

Olympus Vanta C Series Handheld XRF Analyzer


Model : Vanta C

Category: Tag:


Olympus Vanta C Series Handheld XRF Analyzer

The Olympus Vanta C Series analyzer is our most advanced handheld X-ray fluorescence (XRF) device for customers who demand laboratory-quality results in the field. It provides rapid, accurate elemental analysis and alloy identification for high-throughput XRF testing.

Olympus Vanta C Series handheld XRF analyzers are built to be tough. Their rugged, durable design makes them resistant to damage in challenging industrial environments for greater uptime and a lower cost of ownership.

With an intuitive user interface and customizable software, the Vanta XRF series is easy to use with minimal training for high throughput and a fast return on investment. Featuring innovative and proprietary Axon Technology™, Vanta analyzers give you accurate results and help boost productivity no matter the environment or working conditions.

Exceptionally durable under extreme conditions.
Superior analytics.
Optional wireless LAN and Bluetooth® for real-time data sharing. Cloud technology enabled.
Intuitive user interface.

Olympus Vanta C Series Specifications

DIMENSIONS (W X H X D) 8.3 cm × 28.9 cm × 24.2 cm (3.25 in. × 11.4 in. × 9.5 in.)
WEIGHT 1.70 kg (3.75 lb) with battery, 1.48 kg (3.24 lb) without battery
EXCITATION SOURCE 4-watt X-ray tube with application-optimized anode material (rhodium (Rh), silver (Ag), or tungsten (W))
(Ag): 8–50 kV
(Rh W): 8–40 kV
PRIMARY BEAM FILTRATION 8-position autoselected filter per beam per mode; optional collimation to 3 mm diameter beam spot
DETECTOR Silicon drift detector
POWER Removable 14.4 V Li-ion battery with hot-swap capability or 18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max
DISPLAY 800 × 480 (WVGA) LCD with capacitive touch screen supporting gesture control
OPERATING ENVIRONMENT Temperature range : −10 °C to 50 °C (14 °F to 122 °F), (continuous duty cycle with optional fan);
Temperature range for the Element: −10 °C to 45 °C (14 °F to 113 °F)
Humidity: 10% to 90% relative humidity non-condensing
DROP TEST Military Standard 810-G 4-foot (1.3 M) drop test
IP RATING AND DETECTOR SHUTTER IP55: dust protected and protected against water jets from all directions
Solid detector shutter to help prevent detector damage
PRESSURE CORRECTION Built-in barometer for automatic altitude and air density correction
GPS Embedded GPS / GLONASS receiver
Cloud enabled with user fleet manager capability
DATA STORAGE microSD™ slot with removable 1 GB industrial SD card included
USB (2) USB 2.0 type A host ports for accessories such as wireless LAN, Bluetooth®, and USB flash drives.
(1) USB 2.0 type mini-B port for connection to computer.
WIRELESS LAN Supports 802.11 b/g/n (2.4 GHz) cable optional USB adaptor
BLUETOOTH Supports Bluetooth® with an optional USB adaptor
AIMING CAMERA Full VGA CMOS camera (Optional)
PANORAMA CAMERA 5-megapixel CMOS camera with autofocus lens
WARRANTY Three-year warranty
SELECTED OPTIONAL ACCESSORIES Field Stand, Soil Foot, Holster, Work Station, Weld Mask, Hot Heel, Probe Shield

Additional information

Lead Time

5-7 days
