Rigaku KT-100S Handheld LIBS Analyzer


Model : KT-100S

Category: Tag:


Rigaku KT-100S

The Rigaku KT-100S handheld metal analyzer easily performs identification of the most difficult alloy grades. The KT-100S analyzer utilizes laser induced breakdown spectroscopy (LIBS) enabling durable and accurate alloy identification for use in:

  • Scrap metal sorting
  • Quality assurance in metal fabrication
  • Positive material identification (PMI) in mission-critical operations, such as aerospace and petrochemical


Advanced light element identification

LIBS is more sensitive and better suited for light element detection, such as aluminum (Al), magnesium (Mg), and beryllium (Be). However, reliable LIBS’ analysis of materials with these elements has been very limited and typically confined to a laboratory environment – until now. The handheld KT-100S metal analyzer represents recent technological advancements in laser and spectrometer miniaturization that has rapidly expanded the use of this technique into industrial operations. KT-100S offers an advanced method for easily identifying the most popular Al grades – 1100, 6061 and 6063 – as well as Al and silicon (Si) brasses and bronzes or Be in coppers.

In addition to the analytical performance of LIBS technology, KT-100S reduces the need for regulatory licensing and registration that previous generation analyzers were susceptible to.


Durable versatility

The handheld KT-100S LIBS analyzer  delivers accurate identification of popular grades of stainless steel, nickel and titanium alloys, but now with the durability you can count on. The KT-100S metal analyzer has successfully passed rigorous durability tests proving its capabilities in the harshest environments. To guarantee protection, the KT-100S underwent strict testing to the United States Military Standard 810-G. These tests involved rigorous vibration, shock and drop testing to evaluate its durability and performance when exposed to environmental stress. In addition, its IP-54 rating and safety window protect against dusty and wet environments. As the first handheld analyzer to have passed these tests, it is truly optimized for rugged use especially as as a scrap metal analyzer. Thus, KT-100S reduces downtime and costs associated to instrument repair known to be common for traditional handheld metal analyzers.


Sophisticated ergonomics Rigaku KT-100S

The design and features of the KT-100S handheld LIBS analyzer put it in a class of its own. The ergonomics consist of a pistol-shape for optimal one-handed operation via use of raised buttons or by use of the ‘quick launch’ navigation buttons located near the trigger. The tilt screen allows for the ability to easily read results in any light and can also be operated as a touchscreen. The KT-100S is also considerably smaller and lighter than traditional metal analyzers. The unique ‘kick stand’ as a ‘grab and go’ position, provides added convenience.


QuickID™ software

Offering a rapid matrix selection, chemical composition and grade identification is simple and easy to read with QuickID software of the KT-100S handheld LIBS. Results are displayed in a simple “match/no match” format that alerts the user of the alloy identification, as well as the elemental composition percentages. Users have the ability to quickly add new alloys to a customized on-board library. The KT-100S is also password-protected with an automatic “sleep mode” for improved safety and battery life. Its on-board camera captures images of the metal pieces being analyzed with the ability to transfer data into a report via USB or WiFi.


Drill Down sample surface preparation

The metal found in these types of industrial environments is usually dirty and oxidized. KT-100S features a patent pending Drill Down auto sample surface preparation capability. Users have the ability to ‘drill down’ dynamically and the analyzer will automatically burn through the common imperfections found in the metal to obtain a clean reading.


Specification Rigaku KT-100S :

Product name KT-100S
Technique Laser induced breakdown spectrometry (LIBS)
User interface:
  • Touchscreen
  • Large, softkey buttons
  • “Quick Launch” handle buttons
Connectivity: USB, WiFi
On-board digital camera: Included
  • Docking station
  • Holster for safe keeping
  • Two rechargeable Li-ion batteries
  • Al & SS verification samples
  • MIL-STD-810-G certified rugged/drop tested
  • IP-54 rated
Warranty: 12 months

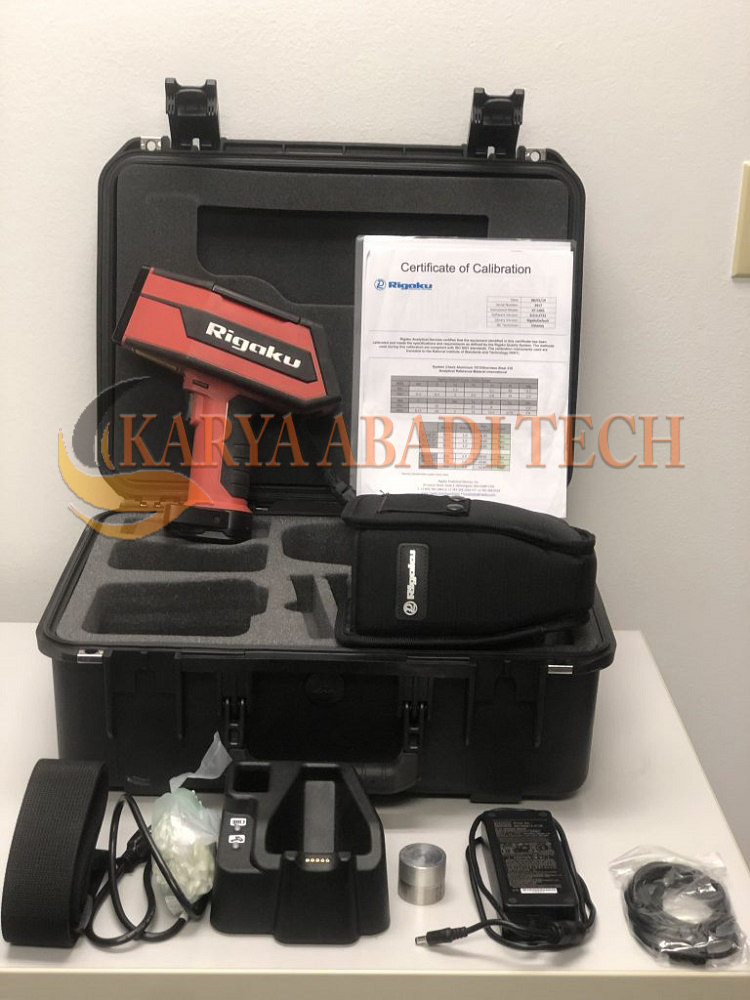

Package includes Rigaku KT-100S :

  • KT-100S gun
  • Charging dock for Battery and KT
  • User Manual
  • Certificate of Calibration
  • (2) Lithium Ion Batteries
  • Integrated Camera
  • Hard Carrying Case
  • 1 Year warranty

Additional information

Lead Time

5-7 days
