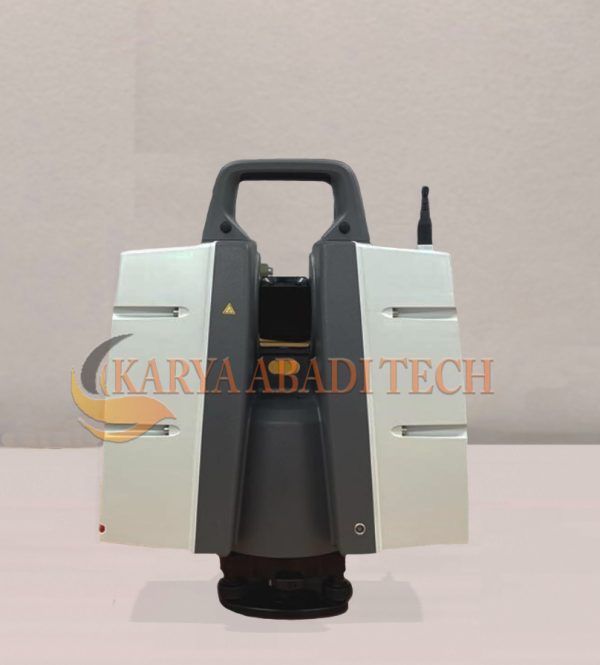

Leica ScanStation P40 3D Laser Scanner
The Leica P40 offers the highest versatility including long range (up to 885 ft/270m at 34% reflectivity), speed (up to 1 million points per second), and accuracy (3D positional accuracy of 3mm at 50m; 6mm at 100m). Delivering outstanding range, speed and data quality whenever and wherever needed- it’s the perfect solution for any task in 3D laser scanning.
The right choice
Whether capturing 3D geometry of civil infrastructure, creating an as-built representation of a large industry complex, reconstructing a crime scene or generating 3D data for integration into Building Information Modelling (BIM), you know you’ll need an accurate long range scanning tool for your projects – the new ScanStation P30 and P40 laser scanners from Leica Geosystems are the right choice, because every detail matters.
High performance under harsh conditions
The Leica ScanStations deliver highest quality 3D data and HDR imaging at an extremely fast scan rate of 1 million points per second at ranges of up to 270 m. Unsurpassed range and angular accuracy paired with low range noise and survey-grade dual-axis compensation form the foundation for highly detailed 3D color point clouds mapped in realistic clarity.
Reduced downtime
The extremely durable new laser scanners perform even under the toughest environmental conditions, such as extreme temperatures ranging from – 20°C to + 50°C and comply with the IP54 rating for dust and water resistance.
Complete scanning solution
Leica Geosystems offers the new Leica ScanStation portfolio as an integrated part of a complete scanning solution including hardware, software, service, training and support. 3D laser scanner data can be processed in the industry’s leading 3D point cloud software suite, which consists of Leica Cyclone stand-alone software, Leica CloudWorx plug-in tools for CAD systems and the free Leica TruView.
Specification Leica P40 :
| SYSTEM ACCURACY | |||||
| Accuracy of single measurement * | |||||
| Range accuracy
Angular accuracy 3D position accuracy |
1.2 mm + 10 ppm over full range
8″ horizontal; 8″ vertical 3 mm at 50 m; 6 mm at 100 m |
||||
| Target acquisition ** | 2 mm standard deviation at 50 m | ||||
| Dual-axis compensator
|
Liquid sensor with real-time onboard compensation, selectable on/off, resolution 1″, dynamic range ± 5′, accuracy 1.5″ | ||||
| DISTANCE MEASUREMENT SYSTEM | |||||
| Type
|
Ultra-high speed time-of-flight enhanced by Waveform Digitising (WFD) technology | ||||
| Wavelength | 1550 nm (invisible) / 658 nm (visible) | ||||
| Laser class | 1 (in accordance with IEC 60825:2014) | ||||
| Beam divergence | < 0.23 mrad (FWHM, full angle) | ||||
| Beam diameter at front window | ≤ 3.5 mm (FWHM) | ||||
| Range and reflectivity | Minimum range 0.4 m | ||||
| Maximum range at reflectivity | |||||
|
P30 P40 |
120 m
18 % 8 % |
180 m
– 18 % |
270 m
– 34 % |
||
| Scan rate | Up to 1,000,000 points per second | ||||
| Range noise *
|
0.4 mm rms at 10 m
0.5 mm rms at 50 m |
||||
| Field-of-View
Horizontal Vertical |
360° 290° |
||||
| Data storage capacity
|
256 GB internal solid-state drive (SSD) or external USB device | ||||
| Communications / Data transfer
|
Gigabit Ethernet, integrated Wireless LAN or USB 2.0 device | ||||
| Onboard display
|
Touchscreen control with stylus, full colour VGA graphic display (640 × 480 pixels) | ||||
| Laser plummet
|
Laser class 1 (IEC 60825:2014)
Centring accuracy: 1.5 mm at 1.5 m Laser dot diameter: 2.5 mm at 1.5 m Selectable ON/OFF |
||||
| IMAGING SYSTEM | |||||
| Internal camera
Resolution
|
4 MP per each 17° × 17° colour image; 700 MP for panoramic image |
||||
| Pixel size Video
|
Streaming video with zoom; auto-adjusts to ambient lighting | ||||
| White balancing
HDR |
Sunny, cloudy, warm light, cold light, custom
Tonemapped / full range |
||||
| External camera | Canon EOS 60D/70D/80D supported | ||||
| POWER | |||||
| Power supply | 24 V DC, 100 – 240 V AC | ||||
| Battery Type | 2× Internal: Li-Ion; External: Li-Ion (connect via external port, simultaneous use, hot swappable) | ||||
| Duration
|
Internal > 5.5 h (2 batteries)
External > 7.5 h (room temp.) |
||||
| ENVIRONMENTAL | |||||
| Operating temperature
|
–20°C to +50°C / –4°F to +122°F | ||||
| Storage temperature
|
–40°C to +70°C / –40°F to +158°F | ||||
| Humidity
|
95 %, non-condensing | ||||
| Dust/Water
|
Solid particle/liquid ingress protection IP54 (IEC 60529) | ||||
| PHYSICAL | |||||
| Scanner
Dimensions (D × W × H) Weight
|
238 mm × 358 mm × 395 mm / 9.4” × 14.1” × 15.6” 12.25 kg / 27.0 lbs, nominal (w/o batteries)
12.25 kg / 27.0 lbs, nominal (w/o batteries) |
||||
| Battery (internal)
Dimensions (D × W × H) Weight |
40 mm × 72 mm × 77 mm / 1.6” × 2.8” × 3.0” 0.4 kg / 0.9 lbs |
||||
| Mounting | Upright or inverted | ||||
| CONTROL OPTIONS | |||||
| Full colour touchscreen for onboard scan control. Remote control: Leica CS10/CS15/CS20/CS35 controller or any other remote desktop capable device, including iPad, iPhone and other SmartPhones; external simulator. | |||||
| FUNCTIONALITY | |||||
| Survey workflows and onboard
registration |
Quick orientation, Set azimuth, Known backsight, Resection (4 and 6 parameters), Traverse | ||||
| Check & Adjust | Field procedure for checking of angular parameters, tilt compensator and range offset | ||||
| Onboard target acquisition | Target selection from video or scan | ||||
| Onboard user interface | Switchable from standard to advanced | ||||
| One button scan control | Scanner operation with one button concept | ||||
| Scan area definition | Scan area selection from video or scan; batch job scanning | ||||
| Double scan | Automatic removal of point cloud noise introduced by moving objects | ||||
| ORDERING INFORMATION | |||||
| Contact your local Leica Geosystems representative or an authorised Leica Geosystems dealer. | |||||
This Leica ScanStation P40 Standard Package includes:
● 1x ScanStation P40 laser scanner (827494)

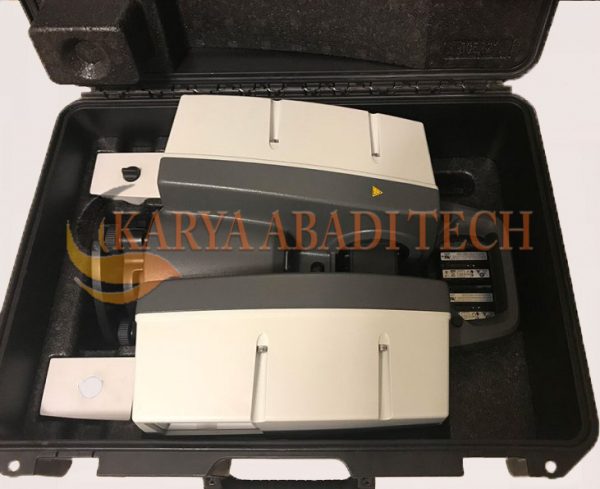

● 1x GVP645 transport box (769625)
● 1x GDF323 Tribrach without optical plummet (777970)
● 4x GEB242 Lithium-Ion Battery (793975)
● 1x GKL311 Single charger Prof 3000 (799185)
● 1x GEV228 data cable (766567)
● 1x GHM008 Scanner height meter (772829)
● 1x GHT196 Distance holder for height meter (722045)
● 1x ScanStation P40/P30 Quick Guide
● 1x ScanStation P40/P30 System USB Stick
● 1x Cyclone CD (755609)
● 1 year CCP Basic contract (6009442)
Additional information
| Lead Time | 5-7 days |
|---|---|
| Packaging | Box |
