Elvatech ElvaX ProSpector 2 Handheld EDXRF Metal Analyzer


Model : ElvaX ProSpector 2



Elvatech ElvaX ProSpector 2 Handheld EDXRF Metal Analyzer

ElvaX ProSpector 2 is our time-tested handheld XRF analyzer. Due to the advanced electronics and state-of-the-art mathematical algorithms, ProSpector 2 provides ultimate quality of measurement within a couple of seconds. It is an intuitive and user-friendly instrument for highly accurate elemental analysis.

Product Details ElvaX ProSpector 2


With powerful hardware and unique software algorithms, the ProSpector 2 offers the highest precision and accuracy of elemental analysis for a wide range of materials.


Dynamically Adaptive Shaping (DAS) DPP developed by Elvatech combined with the Fast SDD detector makes the ProSpector 2 the fastest handheld XRF analyzer on the market.


Thanks to the digiX-40 digital X-Ray source, automatic temperature and barometric corrections, and digital calibration adjustment, ProSpector 2 offers long-life reproducibility of the analysis without the need to re-calibrate the system.


Benefit ElvaX ProSpector 2

  • High speed of operation @ above 500 000 CPS count rate
  • Ambient temperature and pressure corrections for highest stability
  • Over 10 hours operation from the battery
  • Detector protection
  • Extensive and editable alloy grade library
  • Protective film replacement with no tool required
  • Full compatibility with ElvaX PC software
  • Radiation safety: IR proximity sensor and low count detection

ProSpector 2 is a powerful handheld XRF analyzer, designed by Elvatech. Due to the advanced hardware and unique software algorithms, ProSpector 2 provides ultimate speed and accuracy of the elemental analysis. ProSpector 2 combines powerful analytical software toolkit with an easy-to-use interface, allowing even novice operators to perform any necessary measurements in seconds.


Applications ElvaX ProSpector 2

  • PMI and alloy
  • Metal
  • Mining and Exploration
  • Environmental analysis
  • RoHS and WEEE
  • Lead in paint
  • Archeometry
  • Clays and Oxyde
  • Forensics
  • Car catalyst
  • Coating thickness
  • Soil and sediment

Small Objects Analysis

Use a laboratory stand to prevent X-Ray scattering when analyzing small objects or light matrix samples

Instant Analysis Results Print-out

A portable Bluetooth printer provides measurement prints at any time, anywhere.

Weld Joints Analysis

An adaptor for weld joints analysis focuses X-Ray spot on a weld joint excluding surrounding material.

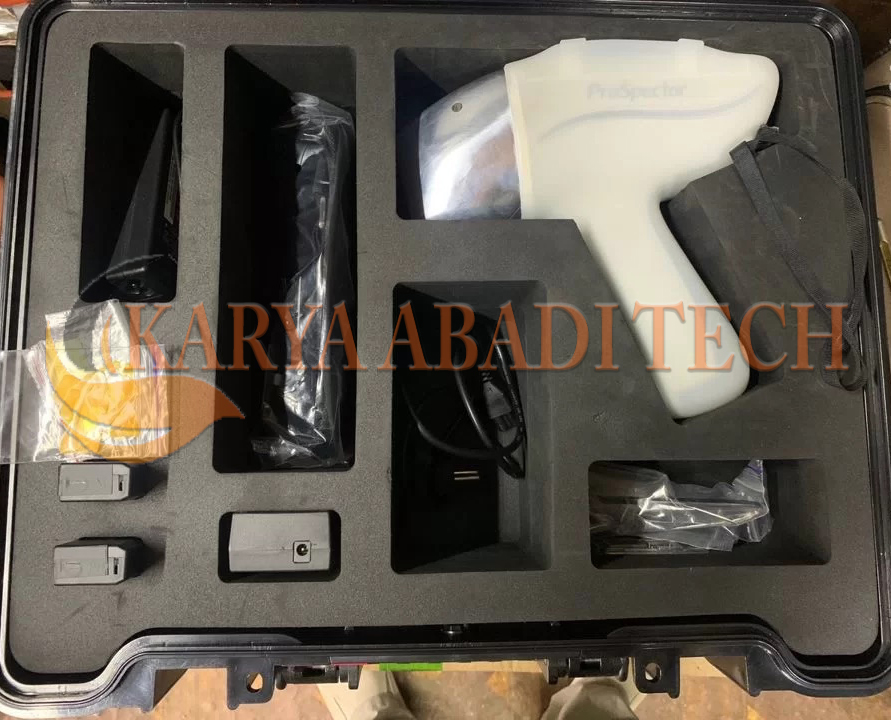

Convenient Carrying Case and Holster

Shock and water resistant carrying case allows you to take the instrument anywhere you need it. A holster with belt straps is used to keep the instrument handy all the time.



Digital X-Ray Source digiX-40

  • Anode: Rh, W
  • Voltage: 40 kV
  • Current: 200 uАmp
  • Power: 4 W
  • 5 positions filter changer

X-Ray Detector

  • Type: Fast SDD (optional PIN)
  • Area: 25 mm2
  • Energy resolution: Count rate: 500,000 cps


  • DPP: proprietary DAS (Dynamically Adaptive Shaping) type, 80 MHz sampling rate
  • MCA: 4096 channels

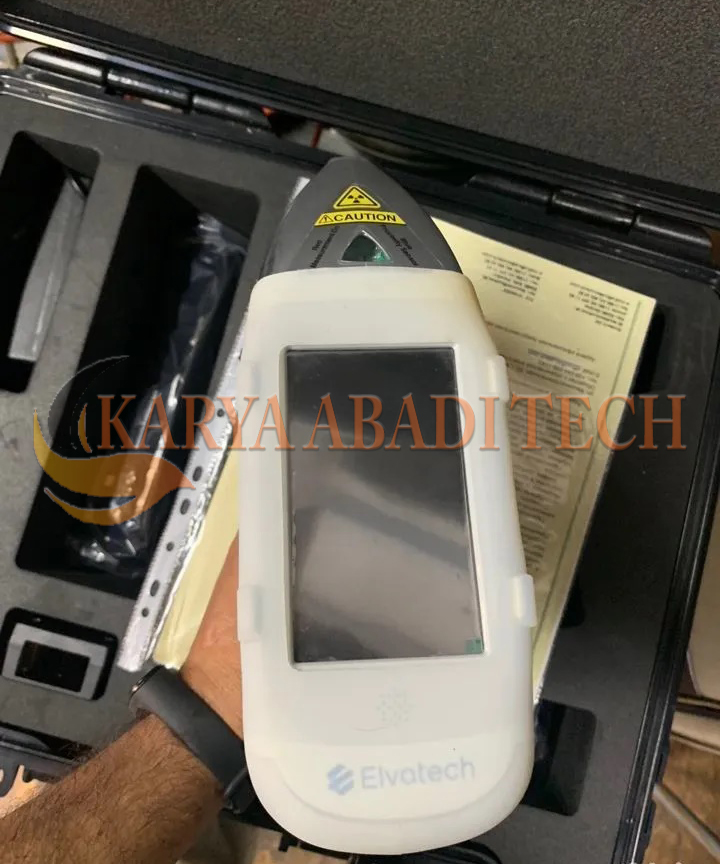

  • Display: 4.3″
  • Connectivity: USB, Bluetooth
  • High resolution video camera (option)


  • Dimensions: 242 х 230 х 78 mm
  • Weight: 1.4 kg


  • Operating system: Windows EC7
  • Analysis algorithms: Fundamental parameters (FPA), Empirical (regression) calibrations


Additional information

Lead Time

5-7 days
