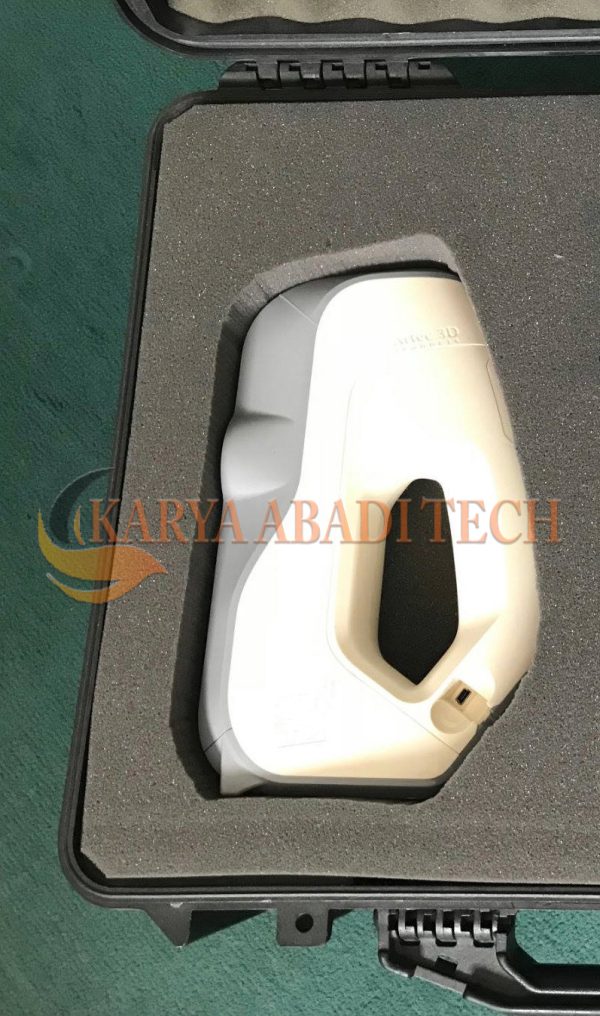

Artec Eva Laser 3D Scanner

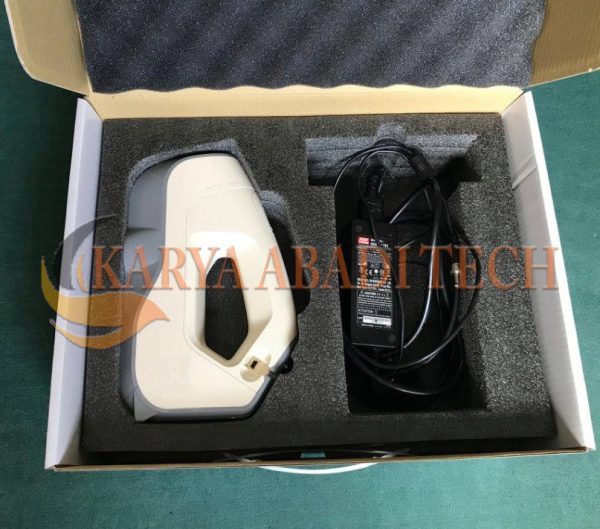

Artec Eva 3D Scanner for sale, full-color 3D scanner, an Artec Studio Pro 14 Lifetime License includes, barely used by one owner only. Excellent ready to scan condition. This Artec Eva sale includes Artec Studio Pro lifetime, Power supply, Batteries, Battery belt pouch, Charger, Original Artec USB cables, Artec Original Box

Artec Eva 3D Scanner is like a video camera that captures in 3D! The Artec Eva captures up to 16 frames per second and is similar to a video camera which captures in 3D. Frames are aligned automatically in real-time, which makes scanning quick and easy.

Perfect for the creation of special effects, medical and bio-mechanical research. Eva’s textured models can also be used in such industries as animation, forensics and medicine. Extremely portable, these hand-held scanners can be used in the lab, onsite at your location, or outside.

The Artec video-based scanners’ outstanding measuring speed of up to 500,000 points per second make them many times faster than laser scanners and can be used to scan moving objects as well as stationary ones, opening new possibilities to customers where motion capture is needed as well as in more traditional industries.

Fast 3D scanner for professionals

This structured-light 3D scanner is the ideal choice for making quick, textured, and accurate 3D models of medium-sized objects such as a human bust, an alloy wheel, or a motorcycle exhaust system. It scans quickly, capturing precise measurements in high resolution.

Light, fast, and versatile, Eva is our most popular scanner and a market leader in handheld 3D scanners. Based on safe-to-use structured-light scanning technology, it is an excellent all-around solution for capturing objects of almost any kind, including objects with black and shiny surfaces.

GENERAL SPECIFICATIONS ARTEC EVA

• 3D resolution: Up to 0.5 mm
• 3D point accuracy: Up to 0.1 mm
• 3D accuracy over distance: Up to 0.03% over 100 cm
• Colors: 24 bpp
• Texture resolution: 1.3 mp
• Scanning technology: Structured light
• Structured light source: Flashbulb (no laser)
• Working distance: 0.4 – 1 m
• Linear field of view: Closest range 214 x 148 mm
• Linear field of view: Furthest range 536 x 371 mm
• Angular field of view: 30 x 21°
• Video frame rate: Up to 16 fps
• Exposure time: 0.0002 sec
• Data acquisition speed: Up to 2 mln points/sec.
• Multi-core processing: Yes

OUTPUT FORMATS

• 3D formats: OBJ, PLY, WRL, STL, AOP, ASCII, Disney PTEX, E57, XYZRGB
• Formats for measurements: CSV, DXF, XML

COMMON SPECIFICATIONS ARTEC EVA

• Weight: 0.85 kg (1.9 lb)
• Dimensions: 262 x 158 x 63 mm
• Power consumption: 12V, 48W
• Interface: USB 2.0, USB 3.0 compatible
• Processing capacity: 40 mln triangles / 1 GB RAM

REQUIREMENTS

• Processor: Intel I5 or I7
• Memory: 12 GB
• Video cards: NVIDIA or AMD
• Recommended: NVIDIA GeForce 400 Series or higher, at least 1 GB of memory
• OS: Windows 7, 8, 10 – x64
• Free disk space: 300 MB for installation
